Wheels Manufacturing

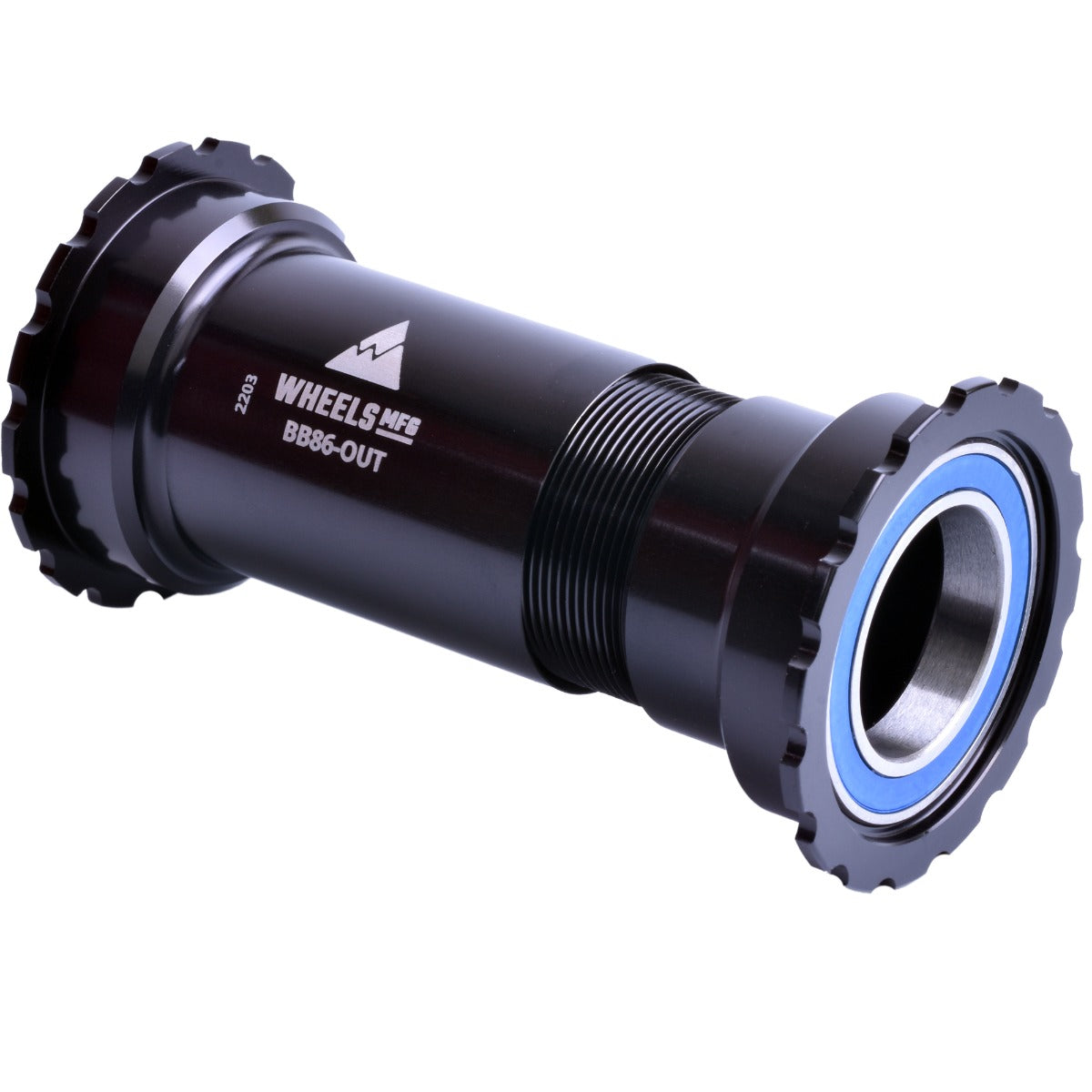

Wheels MFG BB86/92 BB -> Shimano

Wheels MFG BB86/92 BB -> Shimano

BB Shell
Spindle
$172.99 CAD
$172.99 CAD
Sale Inquire for Availability
Shipping calculated at checkout.

Threaded BB for BB86, BB92 and PF90 frames and 24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

  • Bearings: Enduro ABEC-3
  • Color: Black
  • Bottom Bracket/Frame Interface: BB86, BB92, PF90
  • Bottom Bracket Shell Width: 86mm - 92mm
  • Bottom Bracket Shell I.D.: 41mm
  • Over Bearing Width: 93mm in 86.5mm wide shell
  • Crank Spindle Diameter: 24.00mm
  • Tool Pattern: 48.5mm x 16 notch
  • Weight: 106g
  • Over Bearing Width Dimensions include supplied silicone dust shields

          Compatible with the following Bottom Bracket Standards (41mm BB shell inner diameter, 86mm - 92mm width):

          • BB86
          • BB92
          • PF90 (Trek)
          Compatible with 24.00mm spindle diameter cranksets.
