T-Lab
T-Lab X1 Frameset
T-Lab X1 Frameset
Regular price
$2,850.00 CAD
Regular price
Sale price
$2,850.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

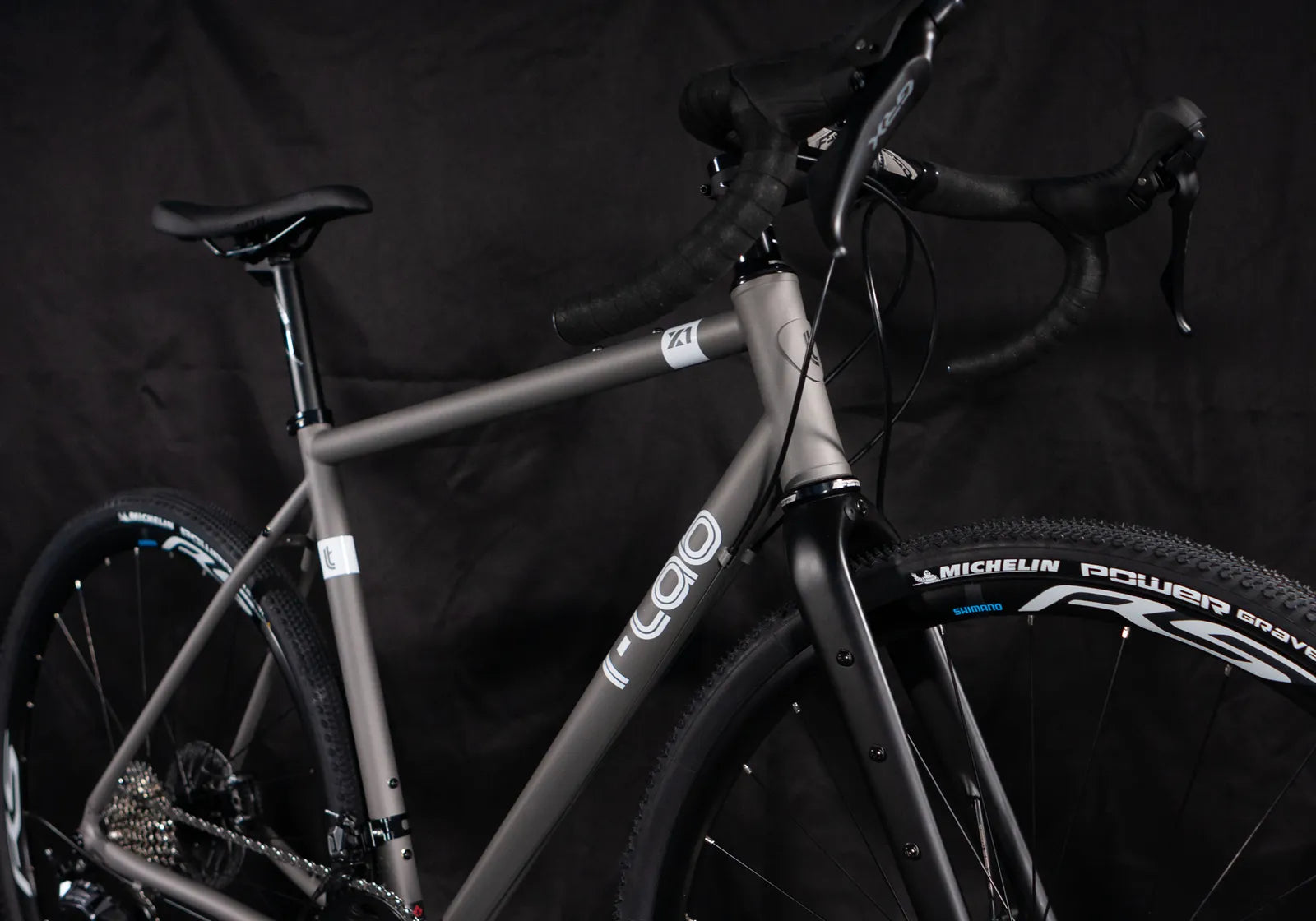

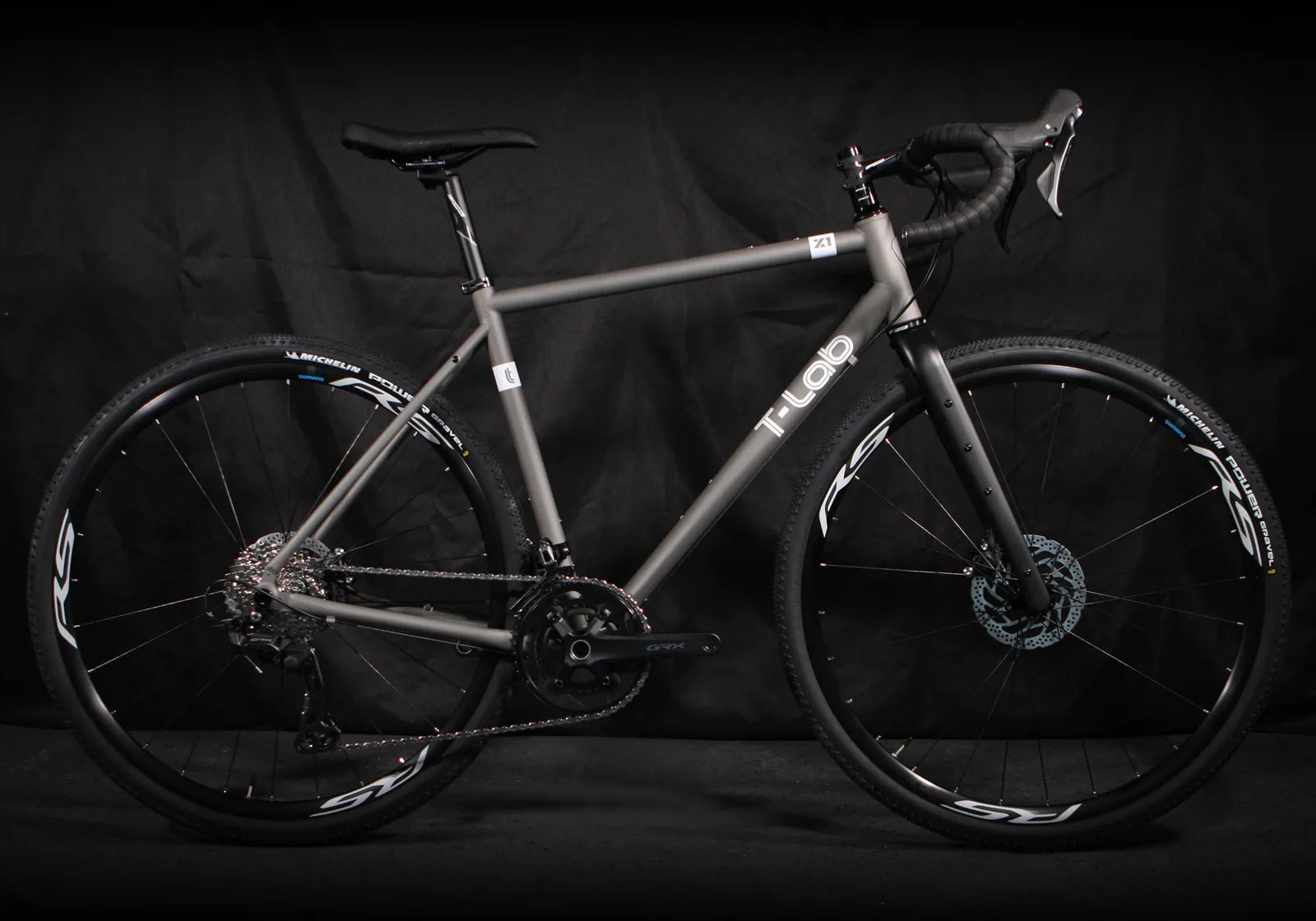

Seamless 3AL-2.5V titanium tubing is expertly crafted in-house to create a timeless gravel bike that combines durability and superior ride quality with exceptional affordability. Built for comfort and speed, the X1 inspires you to
push your limits and tackle longer adventures on varied terrain. Whether you're chasing a personal best on asphalt or exploring unchartered trails, this bike is designed to elevate every ride.
Specs:
- Average Frame Weight: 1475g (Size SMALL; frame only, no options)
- Headtube: 1 1/8” – 1 1/2” (Integrated/Tapered)
- Fork: Full Carbon (tapered 1 1/8” – 1 1/2”) Axel to Crown: 379mm; Rake: 47mm
- Seatpost: 27.2mm
- Front Derailleur: "Clamp-on" type (31.8mm)
- Bottom bracket: BB-386
- Brake Type: Disc (flat mount)
- Rear Axle: 142x12mm
- Wheel Size: 700C
-
Maximum Tire Width: 42c*(700C)
*Tire width may vary depending on tire/wheel manufacturer and model - Standard Sizes : XS, S, M, L, XL
- Frame compatible with groupsets featuring disc brakes
- Lifetime warranty (against manufacturer’s defects)
Geometry:
| Frame Size | Unit | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Average Cyclist Height | ft-in | (52): 5’-1” to 5’-4” | (54): 5’-5” to 5’-8” | (56): 5’-9” to 6’-0” | (58): 6’-0” to 6’-4” | (60): 6’-4” to 6’-6” |
|
|
|
|
|
|
|
|
| Seat Tube Angle | deg | 74 | 73.5 | 73.5 | 73.5 | 73.5 |
|
|
|
|
|
|
|
|
| Top Tube Length (horizontal) | mm | 505 | 536 | 555 | 578 | 595 |
|
|
|
|
|
|
|
|
| Head Tube Length* | mm | 110 | 130 | 150 | 170 | 195 |
|
|
|
|
|
|
|
|
| Frame Reach | mm | 350 | 370 | 384 | 401 | 411 |
|
|
|
|
|
|
|
|
| Fork Rake | mm | 50 | 50 | 50 | 50 | 50 |
|
|
|
|
|
|
|
|
| Trail | mm | 69 | 67 | 66 | 66 | 66 |
|
|
|
|
|
|
|
|
| Wheelbase | mm | 1000 | 1019 | 1036 | 1060 | 1078 |
*Frameset only
