ENVE Composites

ENVE Gravel Disc Fork

ENVE Gravel Disc Fork

Rake
Hub Spacing
Regular price $800.00 CAD
Regular price Sale price $800.00 CAD
Sale Inquire for Availability
Shipping calculated at checkout.

A purpose built carbon fiber fork for gravel and cyclocross applications featuring internal hose routing, flat mount brake compatibility, and clearance for up to 50mm tires.

As gravel riders and partners of the custom frame builder community, we were able to identify the technical improvements needed in a full-carbon gravel fork to meet the needs of the modern gravel rider and the bicycle frames they are riding. As the industry’s leading fork manufacturers, we deliver a new gravel standard for compliance, weight savings, strength, and reliability for demanding rides over any surface.

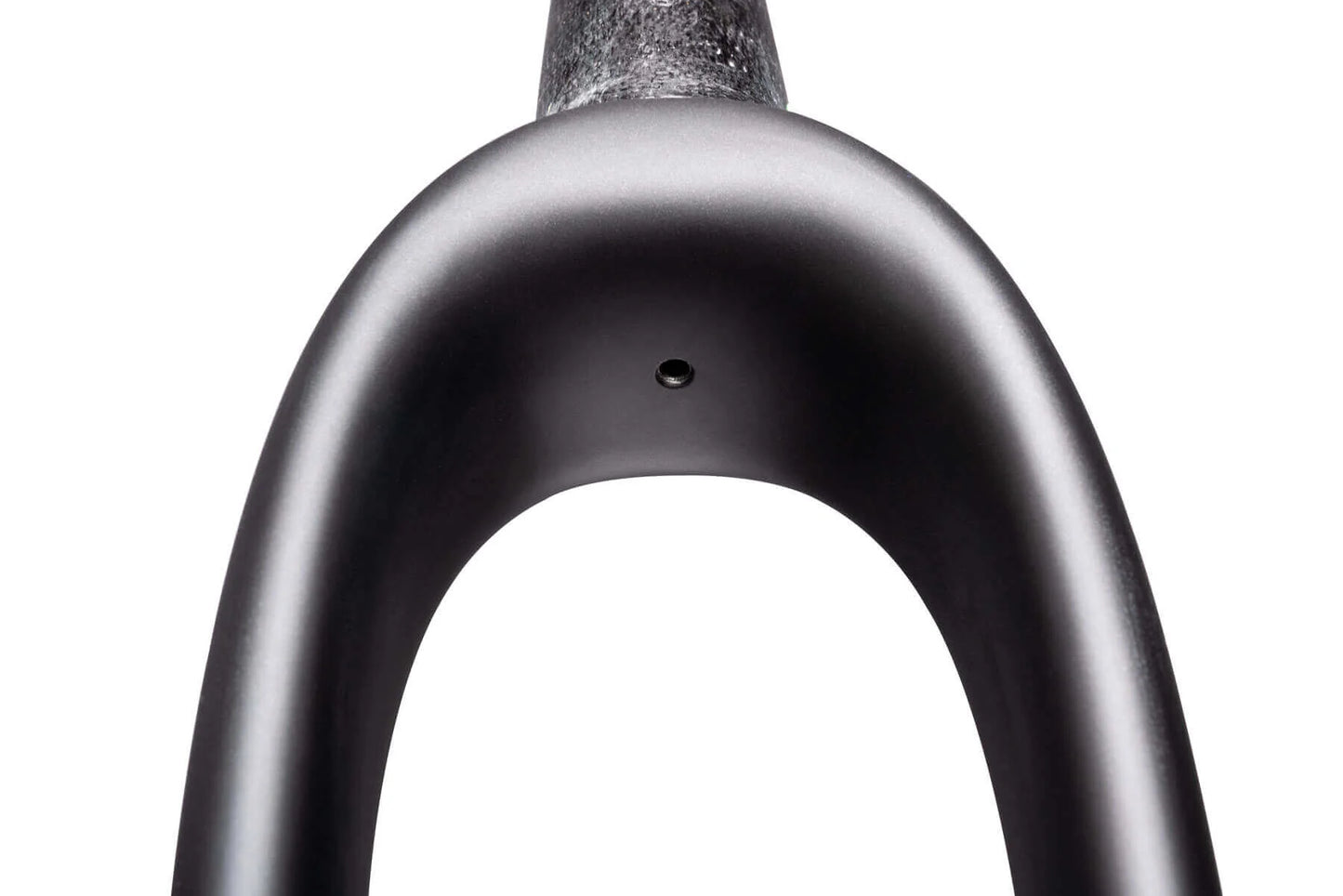

Gravel riders looking for more clearance, weight savings, compliance and the versatility of fender mounts will enhance their gravel grinding experience with this fork.

Material Carbon
Weight 520g
Steer Tube Length 350mm
Steer Tube Taper 1.125" to 1.5"
Rake 47mm & 50mm
Axle To Crown 395mm
Brake Disc
Axle Compatibility 12mm Thru
Max Rotor Size 140mm - 160mm
Max Tire Clearance 700c x 50c, 27.5" x 2.25"
Torque Spec – Steer Tube 5.5nm
Torque Spec - Axle 8nm
Material Carbon
Weight 520g
Steer Tube Length 350mm
Steer Tube Taper 1.125" to 1.5"
Rake 47mm & 50mm
Axle To Crown 395mm
Brake Disc
Axle Compatibility 12mm Thru
Max Rotor Size 140mm - 160mm
Max Tire Clearance 700c x 50c, 27.5" x 2.25"
Torque Spec – Steer Tube 5.5nm
Torque Spec - Axle 8nm
View full details
