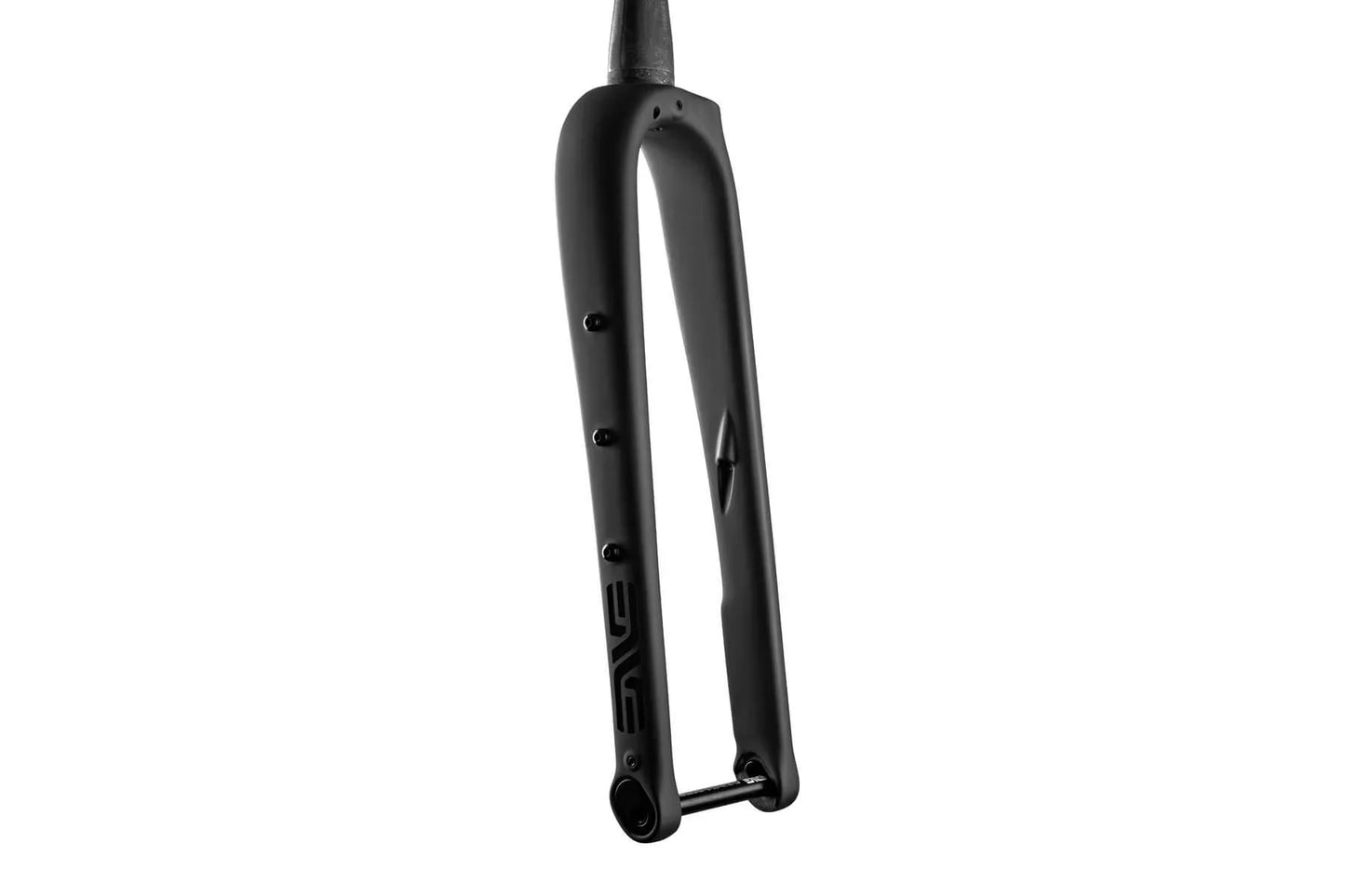

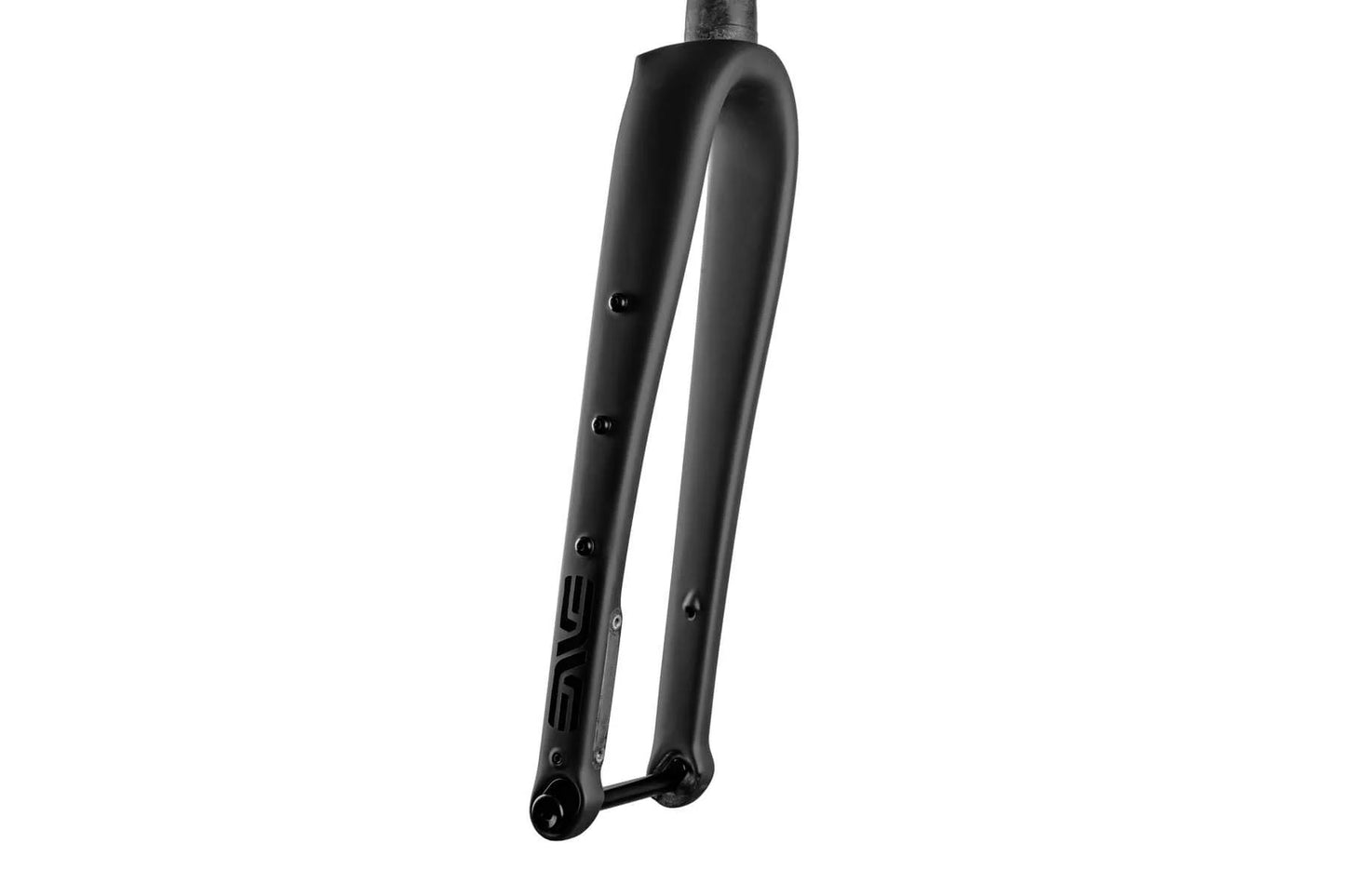

The ENVE Adventure fork provides a lighter weight option for bikepackers and frame builders, while still maintaining reliability and strength.

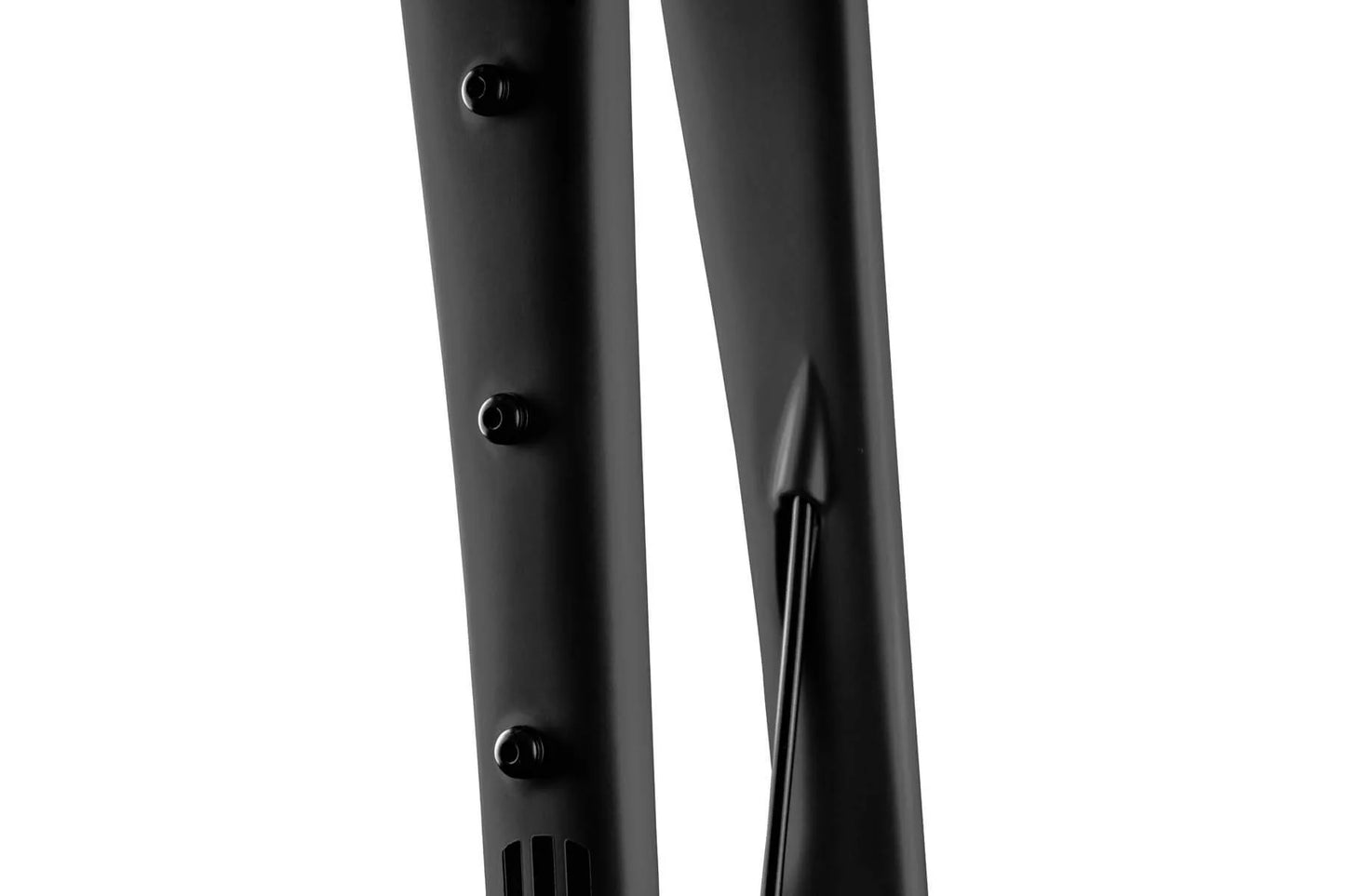

The dynamo light and charger routing is an integrated and protected solution to self-supported bike riders’ needs.

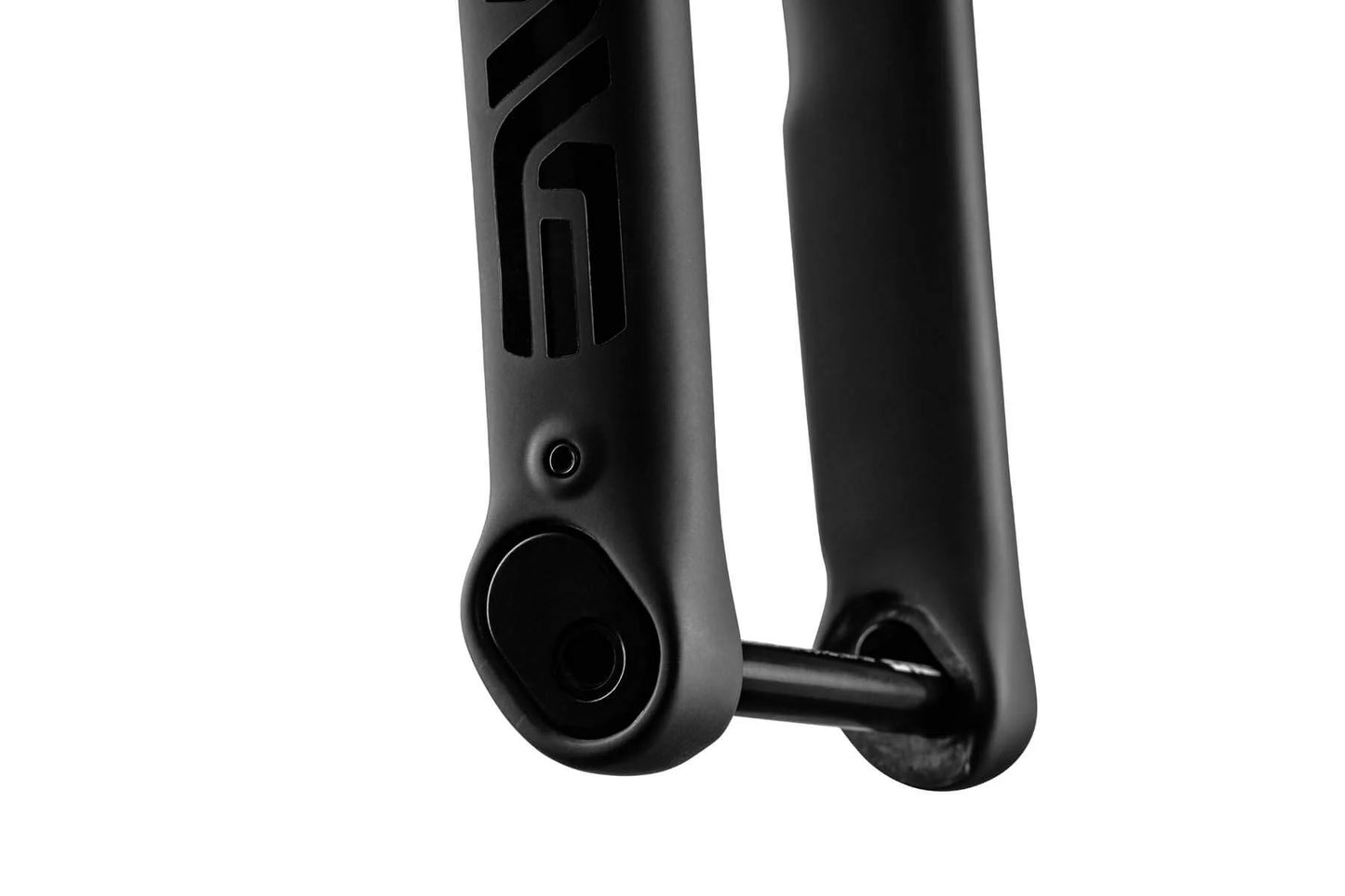

Finally, the fork chip option gives builders versatility in the fork by adjusting the axle-to-crown for different bike geometries for alternative bikepacking methods.
In a market that’s filled with heavy steel fork options, the ENVE Adventure fork offers bikepackers an opportunity to lighten their overall bike load through our trusted carbon fiber fork expertise.
- Three-Pack Accessory Mounts
- Fender and Rack Mounts

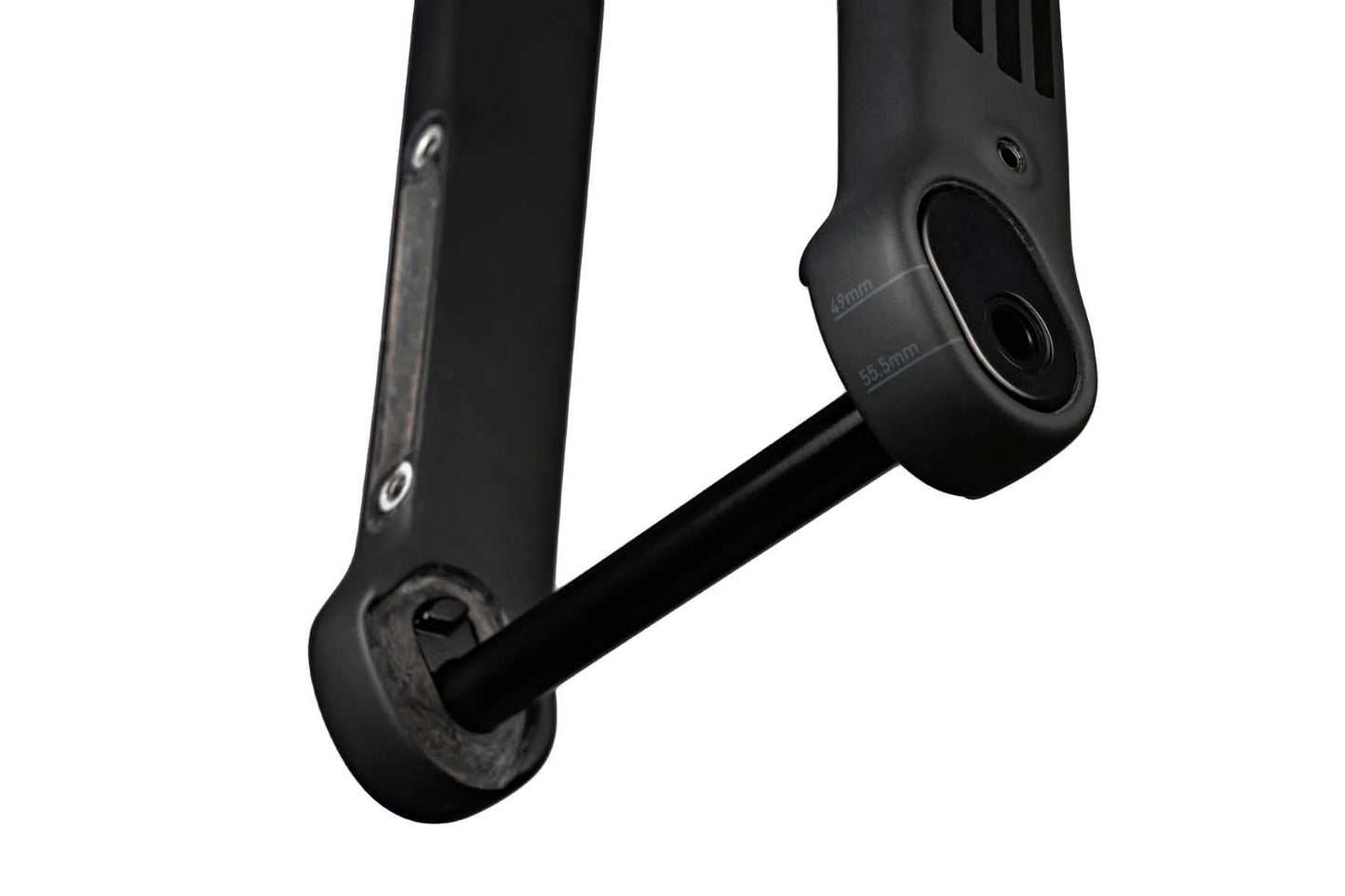

- Reversible Drop-Out Chips for Adjustable Axle-To-Crown and Rake
- Internal Dynamo Routing for Lights and Electronics Charging
- Axle Spacing 12 x 100mm
- Compatible Rotor Sizes 160mm & 180mm
- Tire Clearance: 700 x 53mm (47mm rake), 700 x 58mm (55.5mm rake)
| DROP-OUT CHIP POSITION |
49MM RAKE |
55.5MM RAKE |
| Material |
Carbon |
Carbon |
| Accessory Mounts |
Yes (M5 Bolts) |
Yes (M5 Bolts) |
| Weight |
575g |
575g |
| Steerer Tube Length |
350mm |
350mm |
| Steerer Tube Taper |
1.125" to 1.5" |
1.125" to 1.5" |
| Rake |
49mm |
55.5mm |
| Axle To Crown |
398mm |
406mm |
| Brake |
Disc |
Disc |
| Brake Mount |
Flat Mount |
Flat Mount |
| Low Mount Rack Capacity |
18kg, 40lbs |
18kg, 40lbs |
| Front Mount Rack Capacity |
10kg, 22lbs |
10kg, 22lbs |
| 3-Pack Mount Capacity |
6kg per Side (2kg x 3 bolts) |
6kg per Side (2kg x 3 bolts) |
| Axle Compatibility |
12x100mm |
12x100mm |
| Compatible Rotor Sizes |
160mm, 180mm |
160mm, 180mm |
| Max Tire Clearance |
29" x 2.1" (700x53) / 27.5" x 2.4" |
29" x 2.3" (700x58) / 27.5" x 2.6" |
| Torque Spec: Steerer Tube |
5.5nm |
5.5nm |
| Torque Spec: Axle |
8nm |
8nm |
| Torque Spec: Brake Bolts |
Defer to Brake Manufacturer |
Defer to Brake Manufacturer |
| Torque Spec: Accessory Bolts |
2nm |
2nm |
